I wanted to share this PDF document which explains how to deactivate the OEM R8 rear spoiler for anyone who may need it using the Audi equipment VAS.

http://www.fiftypencer8.com/wp-content/uploads/2011/05/OEM-R8-rear-spoiler-deactivation-process.pdf

Here are the instructions for anyone else wishing to deactivate the rear spoiler using VCDS:

Short Method scroll down for the more detailed method

1. You will be presented with the following main screen of VCDS



2. Click the Options button bottom right

3. You will be presented with this screen, click TEST, OK then SAVE


4.. Click on SELECT below Select Control Module


5.. You will be presented with this screen, click on 46-Central Conv.


6.. Click on Coding - 07


7. Highlight and copy the current coding (the big long number) and paste it into a text file or Word file etc just somewhere safe incase you need it later.

8. Paste the number into the bottom box New Coding

9. Change the 8th number along to a 2.
In my case this went from being
1890200201182D098505489AD633
to
1890200001182D098505489AD633

10. Notice how I have only changed the 8th number along to a 0 to deactivate the rear spoiler.


More Detailed Method


1. You need a VCDS HEX-USB+CAN cable from Ross-Tech or occasionally from eBay sellers before their listings are withdrawn.

2. Plug the cable into the OBD-II port which is located in the drivers footwell above the pedals.

3. Insert the key and turn on the ignition

4. Connect the USB end of the cable to your laptop

5. Open the VCDS Application

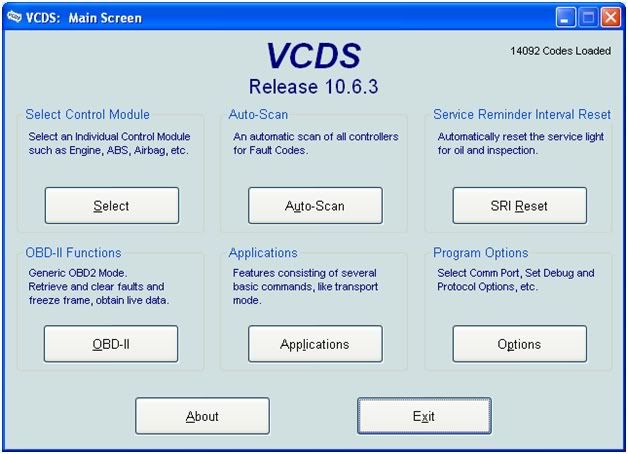

6. You will be presented with the following main screen of VCDS



7. Click the Options button bottom right

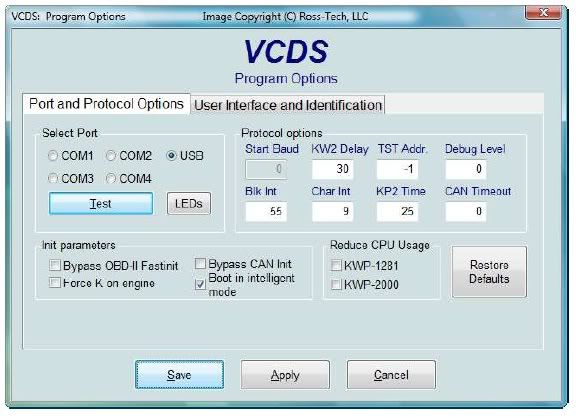

8. You will be presented with this screen, click TEST, OK then SAVE

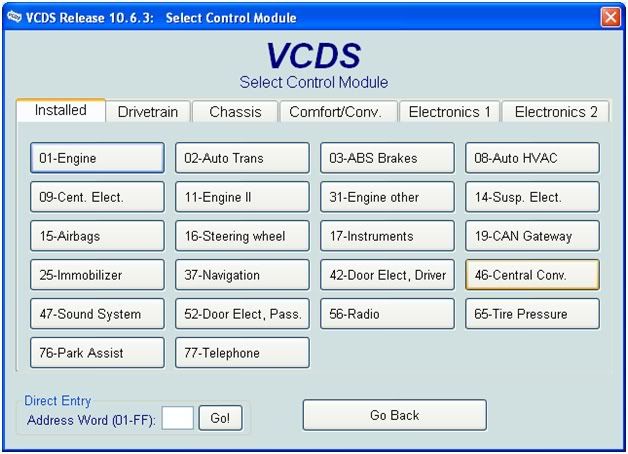

9. Click on SELECT below Select Control Module


10. You will be presented with this screen, click on 46-Central Conv.

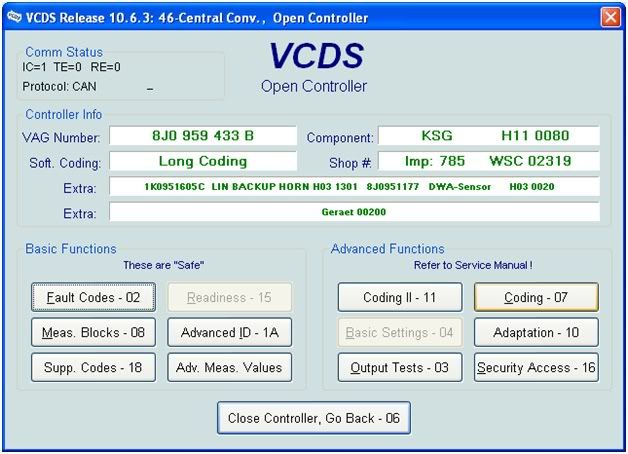

11. Click on Coding - 07

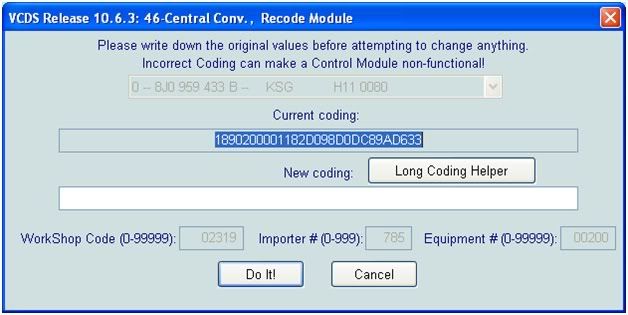

12. Highlight and copy the current coding (the big long number) and paste it into a text file or Word file etc just somewhere safe incase you need it later.

13. Click on Long Coding Helper

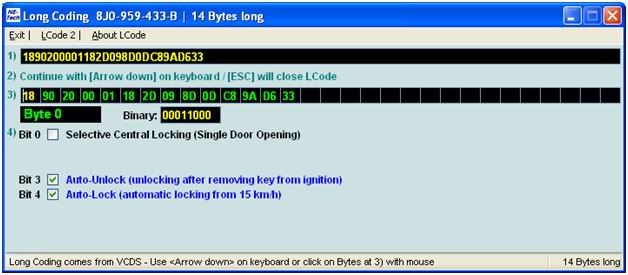

14. You will be presented with this screen. At point 1) you can see the entire coding then at 3) the coding is split into blocks with an explanation below which allows you to change the coding.

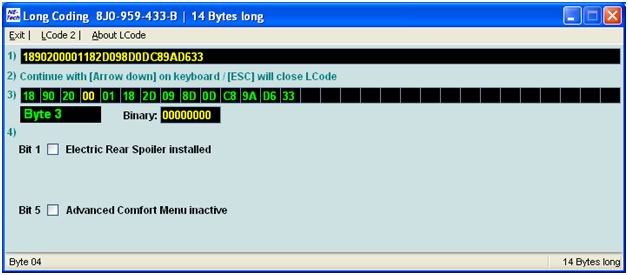

15. The fourth pair of numbers is called Byte 3 as detailed in the picture below. You can see at the bottom there is a checkbox next to Bit 1 which refers to Electric Rear Spoiler Installed


16. Uncheck the box and click EXIT top-left

17. The new coding will be entered in the bottom box automatically


18. Click on Do It!

19. VCDS will confirm if the coding has been applied correctly.

20. Close the VCDS Application and disconnect the cable from the OBD-II port of the vehicle.

21. All finished, the button in the centre console for the rear spoiler should no longer work and the rear spoiler will no longer rise at the pre-determined speed automatically because it has been completely disabled.


·
Registered
Joined
·
1,006 Posts
Very cool, I want to disable mine so it stays up. Fifty pence regarding your message about the miltek I think I am going to buy a quicksilver titan exhaust instead.


·
Premium Member
Joined
·
1,050 Posts
Discussion Starter #5
np Mark, you may have read that I've ordered the Tubi Style exhaust and now just waiting for it to arrive.

I seem to recall that Danko had the tubi style system at one stage or did he have the milltek then moved on to the quicksilver system?

The control system may allow you to disable the rear spoiler whilst it is in the up position but I would imagine it would go back down as part of the process.


·
Registered
Joined
·
5,118 Posts
I just snipped the RED wire near the wing motor wire loom and installed a switch in line. I am digging the switch.:D


·
Registered
Joined
·
62 Posts
hey guys, i think about changing the original spoiler to the GT one...
found this point in my vcds already, but talked to some guys from audi. they said u need to take care cause the abs (don't know if its same in english - the safety brake function ^^) is seperating between spoiler in use or not. so the question is if this coding is enough or u need to do some more changes..
doesn't want to try i its working right over 200km/h so maybe someone got more detailed informations.


·
Premium Member
Joined
·
1,050 Posts
Discussion Starter #9
Everything worked fine for me during a recent trip to Europe with the R8 even at high speed.

Therefore, the coding and the insulating of the pin in the spoiler button mentioned above is perfectly adequate.

Arantador, please share pictures once you have had the spoiler fitted. Are you going with the genuine R8 GT spoiler?


·
Registered
Joined
·
62 Posts
yep, going with the original R8 GT spoiler, diffusor, rear bumper and tailgate+window in polycarbonate :)
i will put on some pictures when the car is finished - still waiting for the full cage to get the FIA certification and to pass the TÜV/MOT to be street legal :(

but back to topic, if u tested it - okay, great thank u. i was just thinking about it because the audi guy made a big topic out of the ABS "problem", alternativ i keep the orginial lifters stored somewhere in the back so they can move and the car thinks the spoiler is still original ;)


·
Registered
Joined
·
62 Posts
i should, but it's a V10 (i prefer V8), and a track-prepared "old, used" V8 is cheaper and faster than an original GT ;)
and at the time i was looking for an R8 the GT was brand new and limited :p


·
Premium Member
Joined
·
559 Posts
Gents, sorry to bump an old thread... But I'm having trouble getting the 46 controller to read. Every time I click on it, it says No response from Controller.

Authentic vcds cable, latest software, tried both win7 and 10.

Any ideas?

Thanks.


·
Super Moderator
Joined
·
6,027 Posts
Try 09 Central Electric, I know on some cars you have to go through a different module


·
Registered
Joined
·
755 Posts
Have you got this option.?

1) Module 09
2) Long Coding (07)
3) Byte 10 – change Hex from 4C to 44 (or from Binary 01001100 to 01000100)
Or just untick «Rear Spoiler Installed»
4) Do it !

Make sure you take a screen shot before you change anything just incase you need to put back to stock.


Good Luck


·
Super Moderator
Joined
·
6,027 Posts
You're right! Found "rear spoiler installed" in the 09 controller.

That's all, right? I unchecked it and "did it". Ha!
Great! Much easier to just check or uncheck boxes since I don't get the hex's, bytes and binary stuff all


·
Registered
Joined
·
365 Posts
I followed the original instructions on page 1 of this thread and it worked fine on my 09 V8.

The one thing that this thread has surprised me with is that FiftyPence is still around. I keep seeing his posts on my travels via searching and finding olde worlde posts (I'm a newbie for a few months) and I thought he was long gone :)

So I take this opportunity to say "Thanks FiftyPence"

As an aside: I still can't change the 3 flashes comfort indicator thing to 5 as per my long dead unanswered thread.


·
Registered
Joined
·
755 Posts
I followed the original instructions on page 1 of this thread and it worked fine on my 09 V8.

The one thing that this thread has surprised me with is that FiftyPence is still around. I keep seeing his posts on my travels via searching and finding olde worlde posts (I'm a newbie for a few months) and I thought he was long gone :)

So I take this opportunity to say "Thanks FiftyPence"

As an aside: I still can't change the 3 flashes comfort indicator thing to 5 as per my long dead unanswered thread.
Don't know weather this would put you on the right track but worth a shot. ( I know it's not R8 based but worth a look.!)

http://forums.ross-tech.com/showthread.php?2463-How-to-change-comfort-turning-singal-cycle-for-A6-C7
